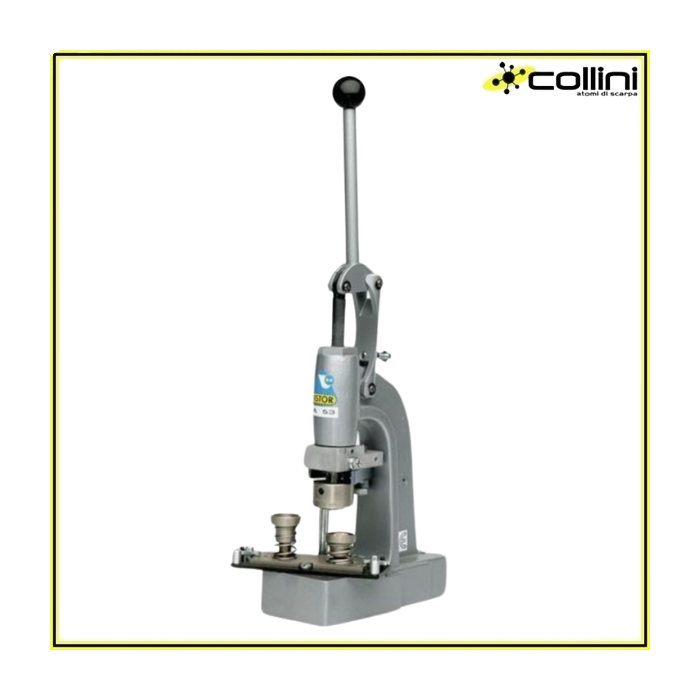

Torchio ASTOR A53
Per produzione di piccole serie
Prodotto solo su ordinazione: tempistiche di consegna 7 gg lavorativi
Torchio ASTOR A53
Torchio ASTOR ® A53
Per produzione di piccole serie
output/h
approx. 500 bottoni
approx. 250 fibbie
(utilizzabile solo per le fibbie piccole)
Macchina manuale ad alta affidabilità
economica e con ottime performance
Senza manutenzione.
DATI TECNICI |
ASTOR 53 |
bottoni |
12´´´ - 60´´´ |
fibbie |
10-30 cm |
output bottoni |
500/h max. |
output fibbie |
250/h max. |
Pressione |
5000 N |
altezza complessiva |
580 mm |
larghezza complessiva |
170 mm |
profondità complessiva |
238 mm |
Altezza della base |
25 mm |
Profondità della base |
116 mm |
Larghezza della base |
100 mm |
Escursione del fusello |
55 mm |
Altezza di lavoro |
109 mm |
|
- |
throat |
69 mm |
peso |
9 kg |
peso KWD 50 max. |
2,1 kg |
peso SWD 50 max. |
2,2 kg |
|
Accessori speciali su richiesta |
|
|
|
Maggiori Informazioni
Shipping Time |
5 |
