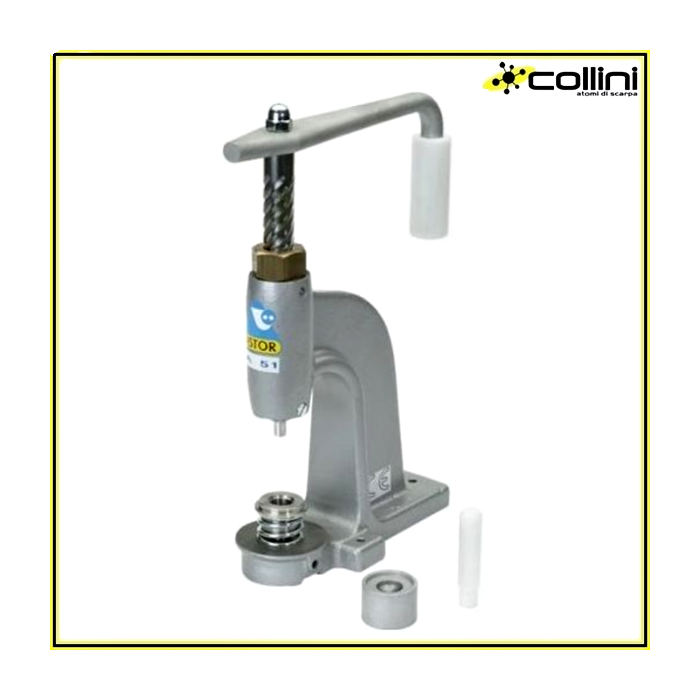

Torchio ASTOR A51
Equipaggiamento da atelier: il torchio ASTOR A51 è un vero e proprio tutto fare dal design affascinante. Realizza bottoni ricoperti, ma anche punzonature ed è estremamente veloce.Prodotto solo su ordinazione : tempistiche di consegna 7 gg lavorativi
Torchio ASTOR A51
Operata a mano
Output/h : approssimativamente 200 bottoni
Basso investimento
Universale
Senza manutenzione
DATI TECNICI
ASTOR 51
bottoni
dal 12´´´ al 100´´´
fibbie
1-8 cm
occhielli ricoperti autoperforanti
SM 4/7, SM 5/11
occhielli ricoperti non autoperforanti
RM 8/15
output bottoni
200/h max.
output fibbie
40/h max.
altezza complessiva
365 mm
larghezza complessiva
100 mm
profondità complessiva
210 mm
altezza della base
28 mm
diametro della base
70 mm
escursione del fusello
50 mm
altezza di lavoro
100 mm
throat
60 mm
peso
6 kg
peso KWD 50 max.
1,3 kg
peso SWD 50 max.
4 kg
Accessori speciali su richiesta
VIDEO
Maggiori Informazioni
Shipping Time
7
